Armstrong X-Wing Performance Wing

PRE-ORDER ONLY- ITEM CURRENTLY NOT IN STOCK- SHIPPING BEGINS END OF MAY

The X-Wing defines the next generation in Armstrong's wing lineup. Designed and constructed to delivery high end performance and efficiency with refined composed handling. It offers a fast, intuitive ride that feels immediately familiar yet distinctly elevated.

Reactivity, progressive power output combined with its lightweight are the key attributes that have it sitting above the XPS in the range. The X-Wing is constructed with high performance materials adding to air frame stiffness and overall weight reduction.



	2.5	3.0	3.5	4.0	4.5	5.0	5.5	6.0	6.5
Wind Range (kts)	26-40	22-38	20-36	18-34	16-30	14-26	12-22	11-20	10-18
Wing Span (cm)	228	252	275	293	311	329	344	353	365
Weight (kg)	1.5kg	1.6kg	1.7kg	1.8kg	1.9kg	2kg	2.1kg	2.2kg	2.3kg
Leading Edge Max Inflation (psi)	9	9	8	8	8	8	8	7	7
Strut Max Inflation (psi)	9	9	9	9	9	9	8	8	8



AIRFRAME

Lighter, stronger.

The X-Wing airframe is built for riders chasing greater efficiency and control. A refined geometry delivers reduced drag, lighter responsive feel, and a noticeably broader wind ranger while foiling. The result is a wing that pulls efficiently and predictably, giving riders the confidence to push harder in powered conditions.

HIGH ASPECT, HIGHER CONTROL

Airframe Geometry

An increased aspect ratio extends the wing's range and improve performance at speed. This geometry favors intermediate to advanced riders, offering greater control and composure in powered conditions. Riders looking for more power and speed can simply size up, gaining the power they need while benefiting from the X-Wing's high-efficiency.

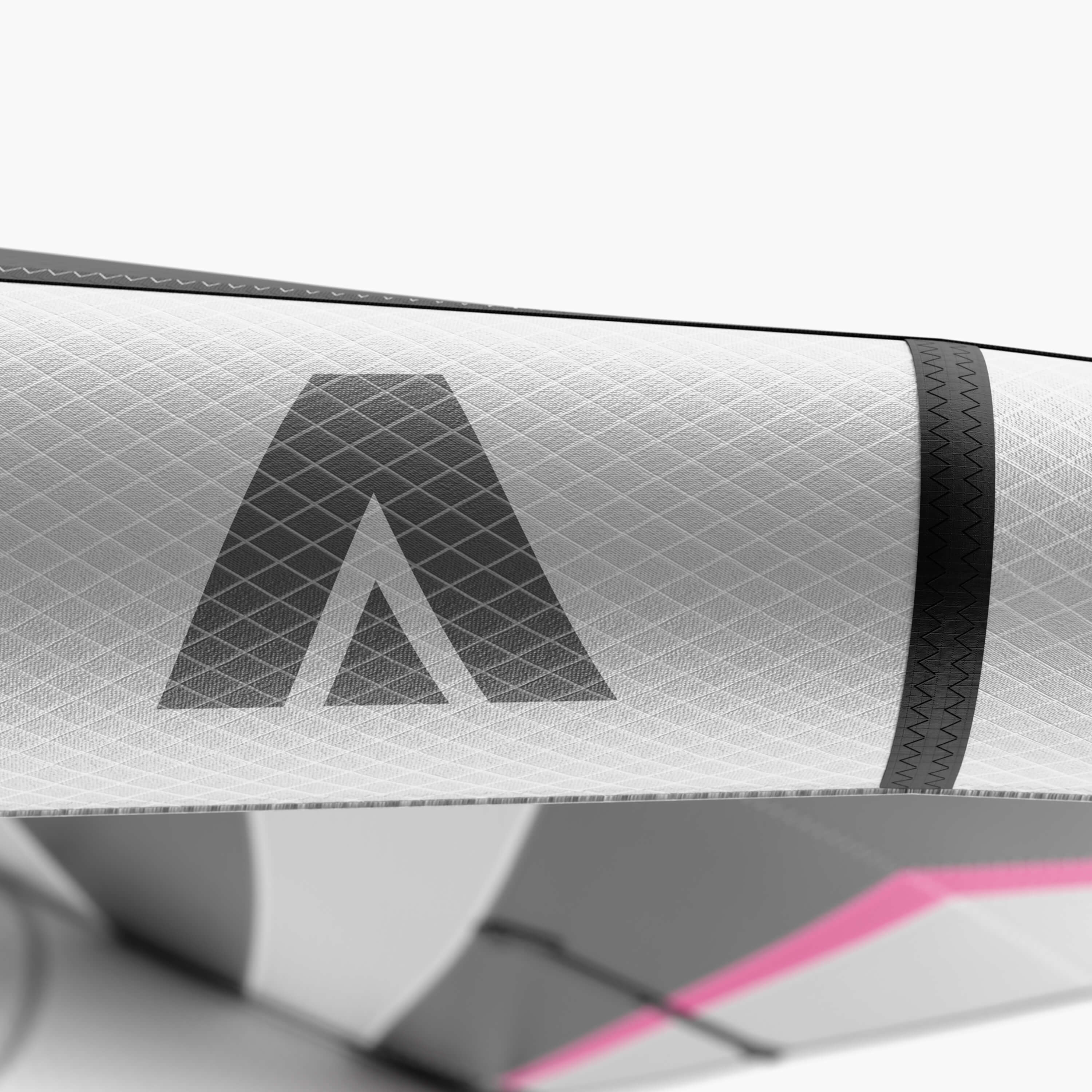

LESS WEIGHT. MORE EFFICIENT.

Built with advanced materials, the X-Wing achieves a reduced leading edge diameter for lower weight without compromising rigidity. This optimized structure delivers improved efficiency throughout the wind range. At under  kg, the wing feels light, maneuverable, and easy to handle keeping fatigue low and performance high.

Waterproof & Stable: The film layer seals the cloth and improves stability by preventing moisture ingress

High tear resistance: Ultra-PE X-PLY reinforcement spreads loads and stops tears from propagating.

Low stretch & High Strength: Ultra-PE fibers are much stronger and less stretchable than polyester, keeping shape under load.

CANOPY

Dual design canopy layout

The X-Wing canopy is engineered to support higher power loads with a stable, low distortion sail. Built using performance focused Teijin Technoforce material, tuned to maintain shape and tension under sustained loads. It delivers consistent drive, a wide powerband and predictable handling across the wind range.

MATERIALS

Highly Curated

Teijin D3 Technoforce feels great in flight, maintains tension over time, and limits wear to a minimum. DLE 130 reinforcement panels further protect the canopy and boost the wing's longevity. Prior to assembly, each piece of canopy material is rigorously inspected to ensure only the very best selection makes it into the wings.

CARBON BATTONS

Minimize flutter

Removable carbon fiber trailing edge battens minimize canopy flutter and provide easy tuning for varying wind strengths.

CROSS PANEL SAIL DESIGN

Inspired from the performance sailing world and innovated by Armstrong in wing design, the Cross Panel Sail (XPS) provides an outstanding connected feel to the wing when riding. By arranging the individual canopy panels at specific angles that best suit load distribution across each panel, this layout greatly reduces sail and airframe distortion.

LONGDITUDINAL PANELS

These panels are strategically aligned across the front of the sail to form and support the high camber aerofoil section. By controlling stretch across the span, they increase tension where it counts most, preserving canopy shape and delivering crisp, efficient feeling especially at speed or under sustained load.

BE SEEN

Signal Pink Reflective Prints

In crowded zones or when you're far offshore, visibility matters. Whether you're threading the chaos at the spot or things go sideways in fading light, high-vis details help to make sure you're spotted fast. With added Signal Pink reflective hits to the new Armstrong wing because being seen isn't about style, its about being safe.

WINDOWS

Safety without compromising performance

Clear TPU windows provide excellent horizontal visibility along the strut for added special awareness and safety. The TPU is lightweight, exceptionally clear, and won't yellow or crack over time.

DYNA-LINK [LOCKING BOOM SYSTEM]

Less is more.

The Dyna-Link design is strong, simple, and highly functional without any added fluff. It lacks added wear points like tracks, hardware and instead opts for carbon fiber boom towers that link to the strut by hooking into super strong Dynema anchor loops. Attached or removed when the strut is deflated, the boom lock solidly into place once the strut inflates to full pressure.

CARBON BOOM

BOOM NOT INCLUDED - X-Wing is Compatible with CARBON BOOM ONLY

Light, strong and precise

The carbon boom has a circular profile carbon core that made with the same tech that goes into the carbon foil. Just the right thickness for feedback and comfort for long sessions.

BALANCED

Optimally placed handle position

The Dyna-Link anchors are placed on the strut in the most balanced and efficient positions. No guesswork needed.  Anchor placement is tuned every 3 wing sizes to maintain consistent balance and feel across all the sizes.

GRIP

More grip more control

The X-Wing boom achieve a Goldlocks-like grip by way of a carbon fiber core wrapped in textured EVA.

Small Dyna-Link Boom	For Wing Sizes: 2.5/3.0/3.5
Medium Dyna-Link Boom	For Wing Sizes: 4.0/4.5
Large Dyna-Link Boom	For Wing Sizes: 5.0/5.5/6.0/6.5



ALL WINGS INCLUDE:

• Repair Kit
• Backpack style wing Bag
• Carbon Battens
